While working with Selenium automation testing, we use different 3rd party frameworks (TestNG, Junit, MBunit, Nunit) in combination with Java or .NET to report the result at the end of the test execution or we use our own dashboard/html kind of reports,
While browsing different ways of reporting, got web links of ExtentReports, most of the links talk about the version 1.x,
but when I looked into the original web link http://extentreports.relevantcodes.com by AnsooArora, it’s upgraded to 2.x, this is something different approach (in configuration wise) than the earlier version 1.x
Usage documentation link – http://extentreports.relevantcodes.com/java/#basic-usage
Let’s see some of the highlights of the latest version 2.x (till now),
Note: we will see the implementation with selenium and Java.
Update –
For extent report version 3.x, please follow Selenium reporting using extent report ver 3.x
Download the jar file from the below location
http://extentreports.relevantcodes.com/ (Click on Download extent for Java)
Extract and add the extentreports-java-2.03.jar file along all required Selenium *.jar files in Eclipse Java Build Path.
We will directly move to the code part and then will see details about each statement, and will see the result report at the end.
Have 3 separate class files,
Class1
public class ExtentManager {
public static ExtentReports Instance()
{
ExtentReports extent;
String Path = "./ExtentReport.html";
System.out.println(Path);
extent = new ExtentReports(Path, false);
extent.config()
.documentTitle("Automation Report")
.reportName("Regression");
return extent;
}
public static String CaptureScreen(WebDriver driver, String ImagesPath)
{
TakesScreenshot oScn = (TakesScreenshot) driver;
File oScnShot = oScn.getScreenshotAs(OutputType.FILE);
File oDest = new File(ImagesPath+".jpg");
try {
FileUtils.copyFile(oScnShot, oDest);
} catch (IOException e) {System.out.println(e.getMessage());}
return ImagesPath+".jpg";
}
}
—————————— Update: Extent version 2.40 on wards ———————————
Following code may not work
extent.config()
.documentTitle("Automation Report")
.reportName("Regression");
Now you can load config.xml file into the code, so manually change the xml file and load it at run time.
config.xml –
<?xml version="1.0" encoding="UTF-8"?>
<extentreports>
<configuration>
<!-- report theme -->
<!-- standard, dark -->
<theme>standard</theme>
<!-- document encoding -->
<!-- defaults to UTF-8 -->
<encoding>UTF-8</encoding>
<!-- protocol for script and stylesheets -->
<!-- defaults to https -->
<protocol>https</protocol>
<!-- title of the document -->
<documentTitle>ExtentReports 2.0</documentTitle>
<!-- report name - displayed at top-nav -->
<reportName>Automation Report</reportName>
<!-- report headline - displayed at top-nav, after reportHeadline -->
<reportHeadline></reportHeadline>
<!-- global date format override -->
<!-- defaults to yyyy-MM-dd -->
<dateFormat>yyyy-MM-dd</dateFormat>
<!-- global time format override -->
<!-- defaults to HH:mm:ss -->
<timeFormat>HH:mm:ss</timeFormat>
<!-- custom javascript -->
<scripts>
<![CDATA[
$(document).ready(function() {
});
]]>
</scripts>
<!-- custom styles -->
<styles>
<![CDATA[
]]>
</styles>
</configuration>
</extentreports>
Syntax – let’s say config file name is – extent-config.xml
loadConfig(new File("./extent-config.xml"));———————————————————————————————————–
Class2 : Testcase 1
public class TC1 {
ExtentReports extent;
ExtentTest test;
WebDriver driver;
@BeforeClass
public void M1(){
extent = ExtentManager.Instance();
driver = new FirefoxDriver();
}
@Test
public void OpenAUT()
{
try{
driver.get("http://www.qavalidation.com/");
test = extent.startTest("OpenUT", "Verify HomePage");
if(driver.getTitle().contains("QA & Validation"))
test.log(LogStatus.PASS, driver.getTitle() +" contain "+"QA & Validation" );
else
test.log(LogStatus.FAIL, driver.getTitle() +" doesn't contain "+"QA & Validation" );
}catch(Exception e){test.log(LogStatus.ERROR, e.getMessage());}
}
@AfterClass
public void tear()
{
extent.endTest(test);
extent.flush();
extent.close();
driver.quit();
}
}
Class3: TestCase2
public class TC2 {
ExtentReports extent;
ExtentTest test;
WebDriver driver;
@BeforeClass
public void M1(){
extent = ExtentManager.Instance();
driver = new FirefoxDriver();
}
@Test
public void M3()
{
try{
test = extent.startTest("ContactPage", "Verify Send button");
driver.get("http://www.qavalidation.com/");
Assert.assertTrue(driver.getTitle().contains("QA & Validation"));
test.log(LogStatus.INFO, "site opened");
driver.findElement(By.linkText("Contact!")).click();
Thread.sleep(2000);
WebElement Send = driver.findElement(By.id("ContactForm1_contact-form-submit"));
if(Send.isDisplayed())
{test.log(LogStatus.PASS, Send.getAttribute("Value")+" button Found");
test.log(LogStatus.INFO, test.addScreenCapture(ExtentManager.CaptureScreen(driver, "./Send")));
}
else
{test.log(LogStatus.FAIL, Send.getAttribute("Value")+" button NOT Found" );}
}catch(Exception e){test.log(LogStatus.ERROR, e.getMessage());}
}
@AfterClass
public void tear()
{
extent.endTest(test);
extent.flush();
extent.close();
driver.quit();
}
}
Now create testNG.xml to run the above 2 test cases…
<suite name="Suite" parallel="none">
<test name="Test">
<classes>
<class name="pkg.TC1"/>
<class name="pkg.TC2"/>
</classes>
</test>
</suite>

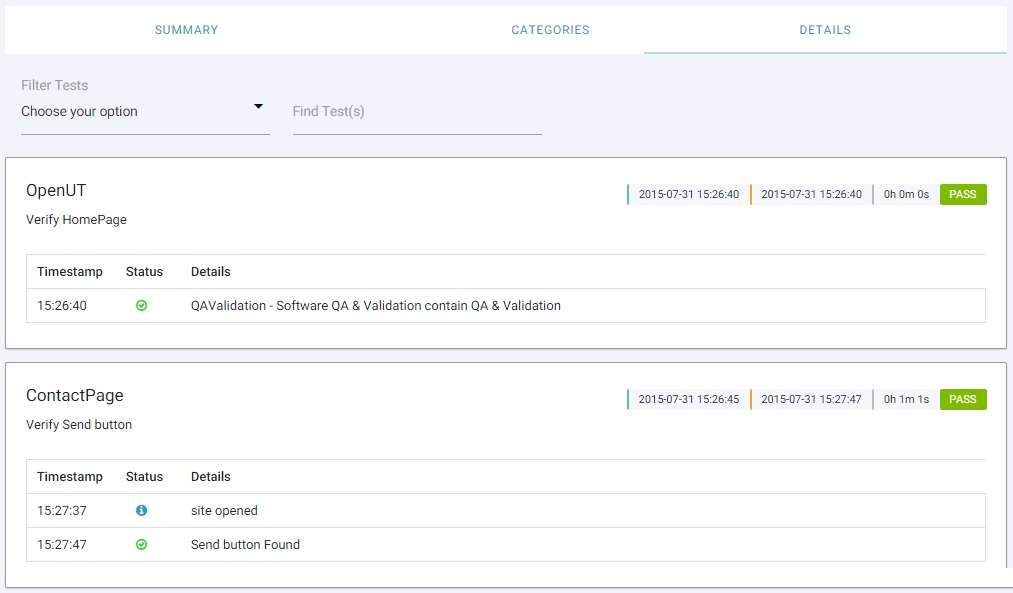

ExtentReports.html file will be created under your project folder.
Open this file, in browser and observe a nice result report of your test run.
In details:
ExtentReports extent = new ExtentReports(file-path, replaceExisting, DisplayOrder);
file-path:
path to save the result report (in .htm or .html), dataType : StringreplaceExisting:
true = Replace new file to the existing report
false = append to the existing report if any.
dataType : booleanDisplayOrder:
OLDEST_FIRST – Old tests display on top of the report
NEWEST_FIRST – New tests display on top of the report
extent.config()
.documentTitle("Automation Report")
.reportName("Regression");
Above is to give some basic information about the report, (this is optional)
extent
.addSystemInfo("Selenium Version", "2.46")
.addSystemInfo("Environment", "QA");
This above is will display on the report, this is optional.
Now, in each testcase –
- extent = ExtentManager.Instance();
getting the Extentreports object instance.
- test = extent.startTest(“OpenUT”, “Verify HomePage”);
Write the startTest to initialize the ExtentTest object.
- For pass scenarios: test.log(LogStatus.PASS, details);
- For fail scenarios: test.log(LogStatus.FAIL, details);
- For info : test.log(LogStatus.INFO, “site opened”);
Depending on the Pass, Fail, Info, Warning and Error – Result report shows with different colored annotations for quick look.
- As we did, extent.startTest, at the end of test run, we need to do extent.endTest(test);
- extent.flush();
To write all above steps, status, details to html
Even we can have screenshots embed inside the report,
test.log(LogStatus.INFO, test.addScreenCapture(ExtentManager.CaptureScreen(driver, “./Send”)));
Means,
test.log(LogStatus.INFO, test.addScreenCapture(String path));
We need to write login to get the image path, which we written in ExtentManager class.
More details about How to enter information about System Configuration and environment details in terms of Map, category wise test run, inserting HTML content, you can refer http://extentreports.com/
